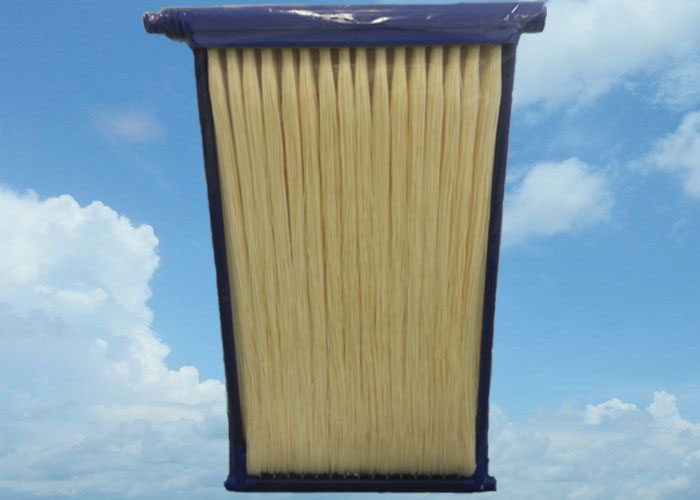

Membrane Description:
Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial waste water treatment.
Membrane bioreactors can be used to reduce the footprint of an activated sludge sewage treatment system by removing some of the liquid component of the mixed liquor. This leaves a concentrated waste product that is then treated using the activated sludge process.
| Modue | NM-MBR-1010 |
| Membrane Materials | Polyvinylidene Fluoride ( PVDF ) |
| Membrane fiber shape | Hollow fibers |
| Permeate seal | ABS Resin |
| Seal material | Polyurethane Resin |
| Element dimensions | 571×815x45 mm |
| Pore Size | 0.01--0.1um |
| Microporous average aperture | 0.1um |
| PH Range | 2---12 |
| Suited temperature | 5-45c |
| Work pressure | 0.02-0.04MPa |
| Design flow rate | 10-20L/m2.h |
| Dia I / O (mm ) | 0.6mm/1.2mm |
| Filtration Methods | Outside-in |
| Supports | UPVC Pipes |
